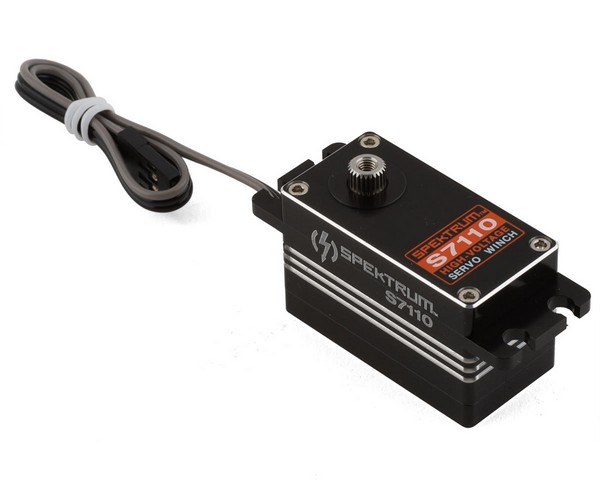

Spektrum 1/10 Servo Winch

Features
Design for 1/10th Scalers and Crawlers
6V to 8.4V Operating Voltage
Durable and long-lasting brushless motor
High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
All Aluminum servo case for heat dissipation
7' feet of line with scale recovery hook included
Built-in Integrated brushless controller for easy set up and installation
Precise metal internal gears
Waterproof
25 teeth output shaft
Includes everything needed to start winching

Overview
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.

Specifications

Application
1/10 Rock Crawlers- Winch
Bearing
Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Connector Wire Length
7.48" (190 mm)
Current Draw Idle
2mA
Current Draw Stall
1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V
Gear Type
Metal
Input Voltage
6.0V ~ 8.4V
Maximum Servo Speed
123RPM @ 6.0V, 155RPM @ 7.4V
Maximum Servo Torque
130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V
Product Height
0.99" (25 mm)
Product Length
1.59" (40 mm)
Product Weight
2oz (57g)
Product Width
0.8" (20 mm)
Programmable
No
Prop 65
Prop 65 Warning Icon California Residents Prop 65 WARNINGS.
Rotation Range
360 Degree Continuous
Servo Operating Voltage
6.0 - 8.4V (HV)
Servo Size Category
Low Profile
Servo Type
Digital
Spline Count
25 - Tooth
Wire Gauge
22 AWG
