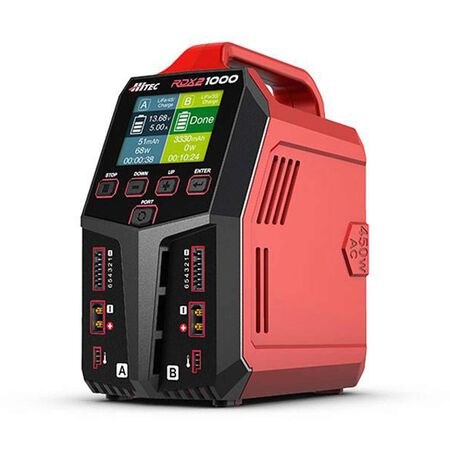

RDX2 1000 AC/DC Dual Port Charger/Power Supply

With a sleek modern design and easy-to-transport handle, the RDX2 1000 is the AC/DC powerhouse you need to charge your high-capacity battery packs at rapid rates.

Overview
The dual output ports each offer 20 amps of power to simultaneously charge two batteries of any chemistry; or, you can pair the outputs to charge at rates up to 35 amps.

The RDX2 1000 features an easy-to-use LCD interface display and handy push button controls, while the front-panel XT60 connectors and XH balance ports help keep wiring uncluttered. Its high charge and discharge rates for lowering resistance and improving power make it perfect for Stock Class racers. Accepting both 12V DC, and 100 – 240 volts AC, the RDX2 1000 is ideal for charging at home or in the field, and perfect for all hobbyists needing ultra-fast charging of their larger battery packs. Internal circuitry allows discharge rates up to 2 amps, and 40 amps when paired with the companion AD350 Analyzer and Discharger.

Features
User-Friendly Interface
Balance, Standard, Storage and Cycle Modes for All Lithium Battery Chemistries
Battery Meter
Internal Resistance
Terminal Voltage Control
Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
Capacity Cut-Off Limit
Smart Ventilation Fan
Intelligent Power Distribution Between Ports
USB-C Socket for PC Interface and Firmware Upgrades
Programmable Power Supply Function 5-27V / 1-15A
Tire Warmer Power Supply Output (16V/8A)
Specifications
Back to Top ^

Battery Type
LiFe (3.3V per cell), LiIon (3.3V per cell), NiCd (1.2V per cell), NiMH (1.2V per cell)
Input Voltage
100V – 240V AC
Maximum Charge Rate
450W AC / 1000W DC
PC Connectivity
Yes
Peak Detection
Yes
Product Height
6" (152 mm)
Product Length
7.5" (191 mm)
Product Width
3.9" (99 mm)
Programmable
Yes
Reverse Polarity Protection
Yes
Safety Timer
Yes
Selectable Charge Rate
Yes
Software Updates
Yes
Voltage Meter
Yes
