RDX1 Mini AC Charger

HRC44295

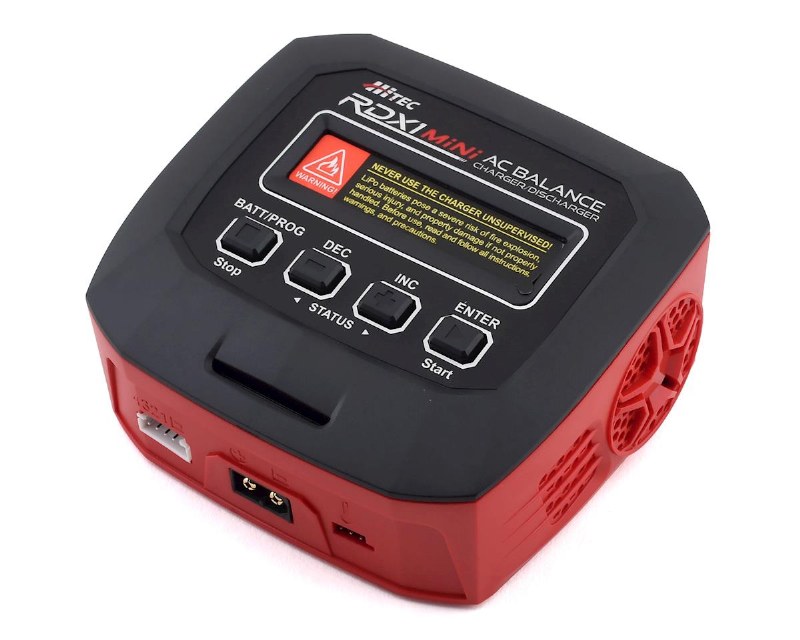

RDX1 Mini AC Charger
Expanding on the popularity and superior performance of the RDX1 charger line, this is the AC input, micro processor RDX1 Mini. Hitecs sleekly-designed, compact AC charger packs 65 watts of power into a fraction of the size of most chargers to meet your battery management requirements. It is compatible with a full range of the most popular battery types, including the new generation LiHV. With 6 amps of maximum charging current and 2 amps of discharging current.

Features:

User-Friendly LCD Interface
Stores 10 Different Battery Memory Charge/Discharge Profiles
Terminal Voltage Control
Built-in Balance Connector (JST, XT)
Cell Balancing While Discharging
Balance, Standard, Fast and Storage Modes for All Lithium Battery Chemistries
Re-Peak Charge Mode and Delta-Peak Sensitivity for NiMH/NiCd Batteries
Optional Temperature Sensor for NiCd/NiMH Charging
Built-in XT60 Connector
Smart Ventilation Fan

Charging Specifications:

AC Input: 100-240 Volts AC
Charge Power: 65 Watts
Charge Current Range: 0.1 - 6.0 Amps
Discharge Power: 10 Watts
Discharge Current Range: 0.1 - 2.0 Amps
Current Drain for LiPo Balancing: 200mA per Cell
NiCd/NiMH Battery Cell Count: 6 - 8 Cells
LiPo/LiHV/LiFe/Lilon Cell Count: 2 - 4 Cells
Pb Battery Voltage: 6 - 12 Volts
Dimensions: 4.61 x 4.17 x 2.17 in. (117 x 106 x 55mm)
Weight: .69 lbs. (315g)
