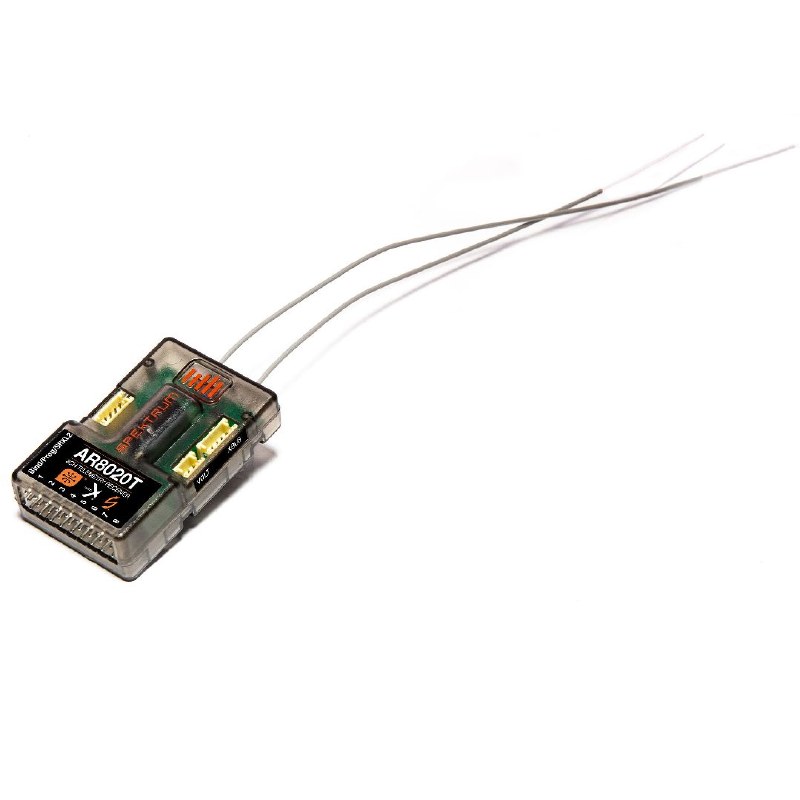

AR8020T 8 Channel Telemetry Receiver

Overview
The Spektrum™ AR8020T 8 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. It features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver, available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8020T also features a bind button for easy binding with no plugs necessary and offers both "SmartSafe" technology and Hold Last as well as preset failsafe types set through forward programming. Also the throttle port is Smart ESC compatible right out of the box.

Please Note:The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8020T receiver.
Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters

Features
Compatible with all Spektrum™ DSM2 and DSMX transmitters
Compact footprint fits most parkflyer size, sport class and giant scale models
Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
Bind button allows for easy binding and eliminates the use of bind plug
Two external antennas will ensure secure RF coverage from all angles of the aircraft
Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires.
End pin output pins for easy and compact installation
Forward Programming capable for setting individual failsafe parameters per channel and more

Specifications

Antenna Length
6.1" (155 mm)
Application
Air
Band
2.4GHz
Bind Method
Bind Button
Channels
8
Failsafe
Yes
Forward Programming
Yes
Input Voltage
3.5 - 9V
Integrated Variometer
Yes
Modulation
DSMX
Product Application
Sailplanes, Helicopters, Air
Product Height
0.59" (15 mm)
Product Length
1.92" (49 mm)
Product Weight
0.56 oz (16 g)
Product Width
1.18" (30 mm)
Range
Full
Remote Receiver Ports
1
Serial Out
SRXL2
Technology
Standard
Telemetry
Yes
Telemetry Range
Full
