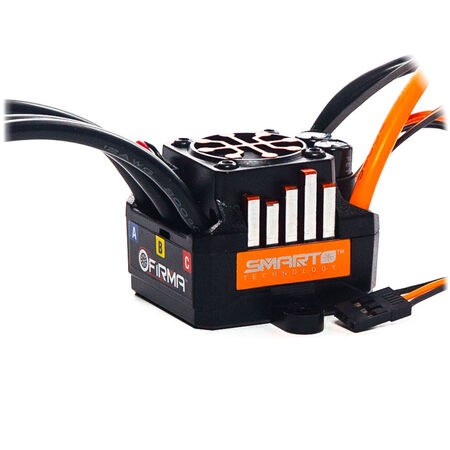

Firma 100 Amp Brushless Smart ESC 2S - 3S

Spektrum Firma 100A Smart ESC for surface vehicles is waterproof and delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.

Product Features
Smart all-in-one telemetry
Fast, powerful 32-bit ARM M4 processor
Waterproof
Multiple options for easy programming:
Button programming
Smart ESC Programming Box
SmartLink USB Updating and Programmer application
Multi-point protection:
Over-current protection
Automatic LiPo low-voltage cutoff
Thermal protection
Failsafe protection
Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
Ideal for 4WD 1/10th – 1/8th scale surface applications running on 3s Lipo setups
High current adjustable BEC (6v or 7.4v @ 4 Amps)
Compact for easy installation in most applications
Ready to install — no soldering required
Rugged plastic case with mounting tabs
Aluminum heat sink for high efficiency
Cooling fan
Adjustable high-power BEC
Firmware updatable through the Smart ESC Programming Box
High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Limited 1-year warranty
Product Overview
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Needed to Complete
Spektrum™ Surface Receiver
Spektrum Smart Technology LiPo Battery
Spektrum Transmitter
What's in the Box?
(1) Spektrum™ Firma™ Smart ESC
(1) Spektrum Smart sticker sheet
(1) Product Manual

Specifications

Amperage
100A - 119A
Application
Surface
Auto Cutoff
Yes
Battery Input Lead
IC5
Battery Type
LiPo (3.7V per cell)
BEC
Yes
BEC Continous Current
4
BEC Voltage
6V and 7.4V selectable
Brakes
Yes
Connector Type
IC5
Drive Type
Forward/Brake/Reverse
ESC Type
Brushless
Forward
Yes
Input Voltage
6.0V - 9.6V (2-4S LiPo, 5-9 cell NiMH)
Low-Voltage Cutoff Programmable
Yes
Max Input Voltage
11.1V
Maximum Burst Current
650A
Maximum Continuous Current
100A
Motor Output Lead
4mm
Motor Type
Brushless
Output
100A
Output Connector
4mm Bullet
Overload Protection
Yes
Product Application
Surface
Product Height
1.33" (34 mm)
Product Length
1.7" (43 mm)
Product Weight
0.306lbs (139g)
Product Width
1.53" (39 mm)
Programmable
Yes
Programming Options
Button, Programming Box, Smartlink App, On Screen Text Gen
Reverse
Yes
Sensored
No
Technology
Smart
Time Delay Brake
Yes
Water-Resistant
Yes
